• No.
• Equipment
• Specifications
• Unit

• 1.
• PV System
• 150KW
• SET

• 2.
• Battery System
• 150KW To 300KW
• SET

• 3.
• PCS
• 150KW Off-Grid Or On-Grid
• SET

• 4.
• Cable & Accessories
• Inclusing DC Cable, AC Cable, Cable Truncking etc.
• SET

• 5.
• System Testing Charge
• Hardware & Software Installation & Testing Before Shipping
• SET

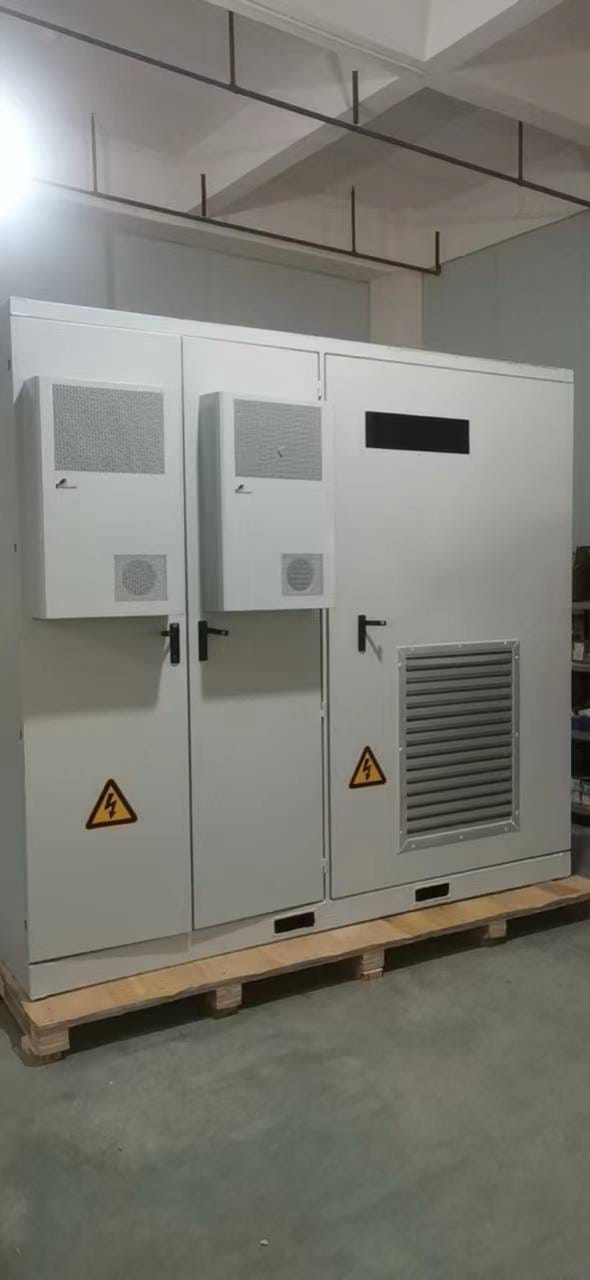

• MODEL
• DWESS150

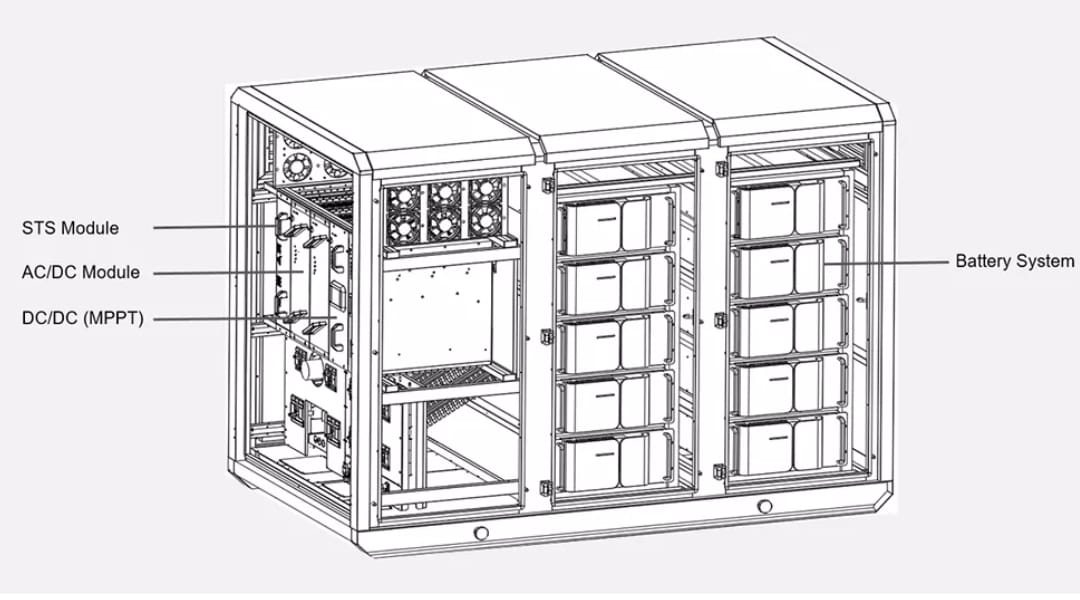

• BATTERY SYSTEM
• PARAMETERS

• AC (on grid)
• Battery System

• Apparent Power
• 150KVA
• Rater Power
• 150KW

• Rated Power
• 150KW
• Rated Current
• 210A

• Rated Voltage
• 400V
• Rated Capacity
• 150KWH

• Rated Current
• 217A
• Operation Voltage Range
• 616V-817.6V

• Voltage Range
• 320V-460V
• Cell

• Rated Frequency
• 50Hz/60Hz
• Nominal Capacity
• 260Ah

• Frequency Range
• 45-55Hz/55-65Hz
• Optimal Working Temprature Range
• -15C-55C

• THDI
• < 3%
• Cycle Life (0.5C RT)
• > 6500 Times

• PF
• *1
• Dimension
• < 73mmT*174mmW*201mmH

• AC Connection
• 3W + N + Pe
• Weight
• 5400*100g

• Transformer
• Yes

• AC (OFF-GRID)
• PACK

• Apparent Power
• 150KVA
• Connecting Way
• 1P16S

• Rated Power
• 150KW
• Voltage
• 51.2V

• Rated Voltage
• 400V
• Capacity
• 260Ah

• Rated Current
• 217A
• Balance Way
• Passive

• THDU
• < 2% Liner
• Weight
• 130Kg

• Rated Frequency
• 50/60Hz

• Overload Capability
• 110%-10min 120^-12min

• PV
• BATTERY SYSTEM
• PARAMETERS

• MAX PV Open-Circuit Voltage
• 1000VDC
• Nominal Voltage
• 716 BV

• MAX PV Power
• 120/180/240KWp
• Nominal Capacity
• 260Ah

• PV MPPT Voltage Range
• 200VDC-850VDC
• Nominal Energy
• 150KWH

• MPPT Number
• 3/4
• Nominal Capacity
• 616V-817.6V

• BATTERY
• CONNECTING WAY

• Voltage Range
• 420V-850V
• Battery Rack Dimesion
• 500mmW*600mmT*1800mmH

• Full Load Operating Voltage Charge
• 450V-850V
• Installtion Way
• Indoor / In Container (recommended to equipped with air condition)

• GENERAL
• COMMUNICATION INTERFACE
• RS485-CAN, LAN

• Max Efficiency
• 96.50%
• Nominal Voltage
• 716 BV

• Dimensions(W*D*H)
• 1200mm*800mm*2050mm

• Weight
• 1250KG

• Enviromental Temprature
• -25 C - +55 C

• Relative Humidity
• 0-95% non-condensing

• Protection Degree
• IP21

• Noise Emmision
• < 750Db

• Max Operating Altitude
• 5000m(>3000m derating)

• Cooling
• Forced Air

• COMMUNICATION

• BMS
• Modbus-RTU, CAN

• EMS
• Modbus-TCP, Modbus-RTU
